About This Service

Most automotive workshops in Adelaide do not own a brake lathe. When your mechanic tells you your rotors need machining, or your clutch replacement requires flywheel resurfacing, they send the components to a specialist — adding a day or more to the turnaround and an outsourcing margin to your bill. All Clutch & Brake has operated its own in-house machining workshop in St Marys since 1984. We do not outsource.

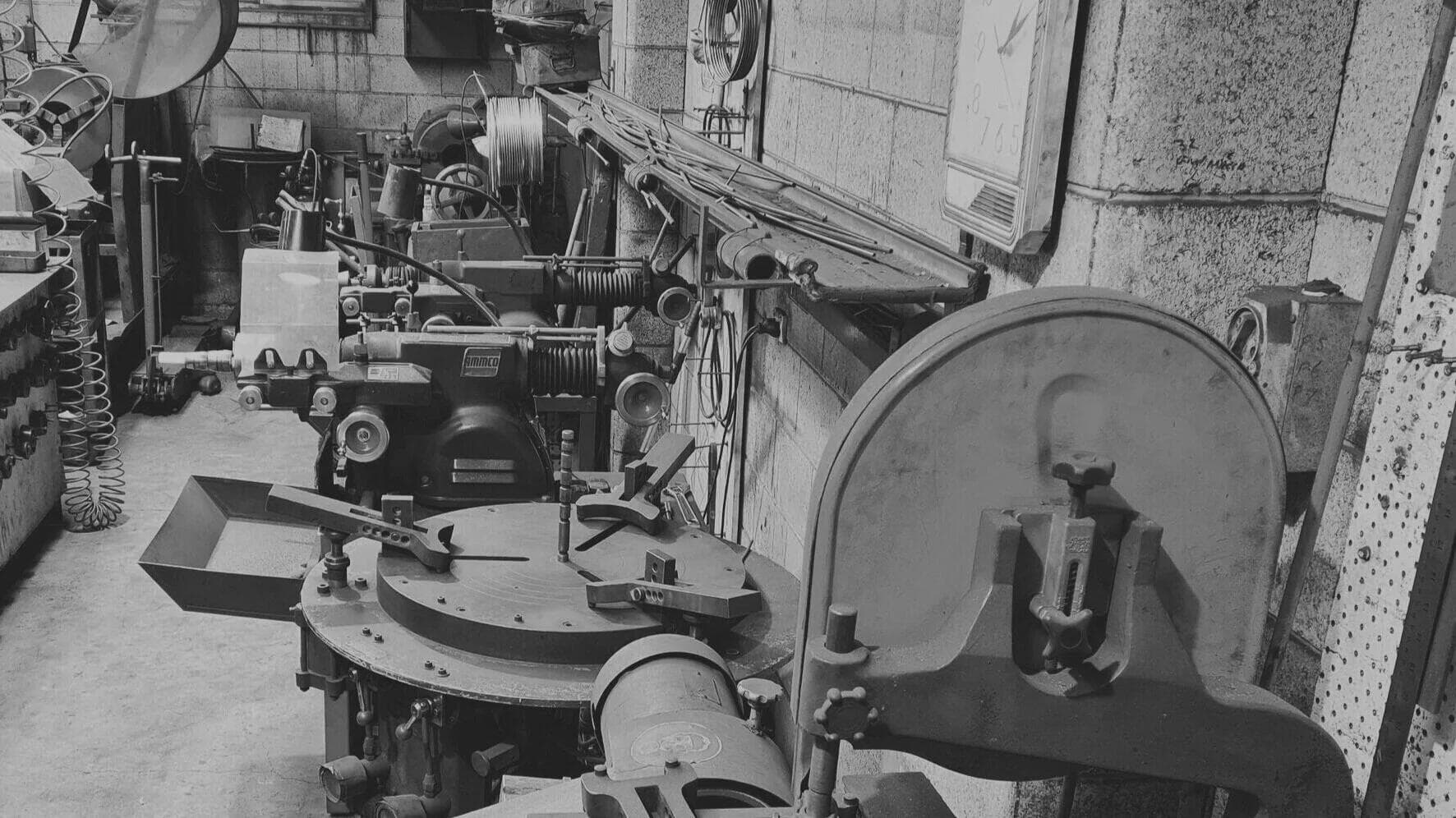

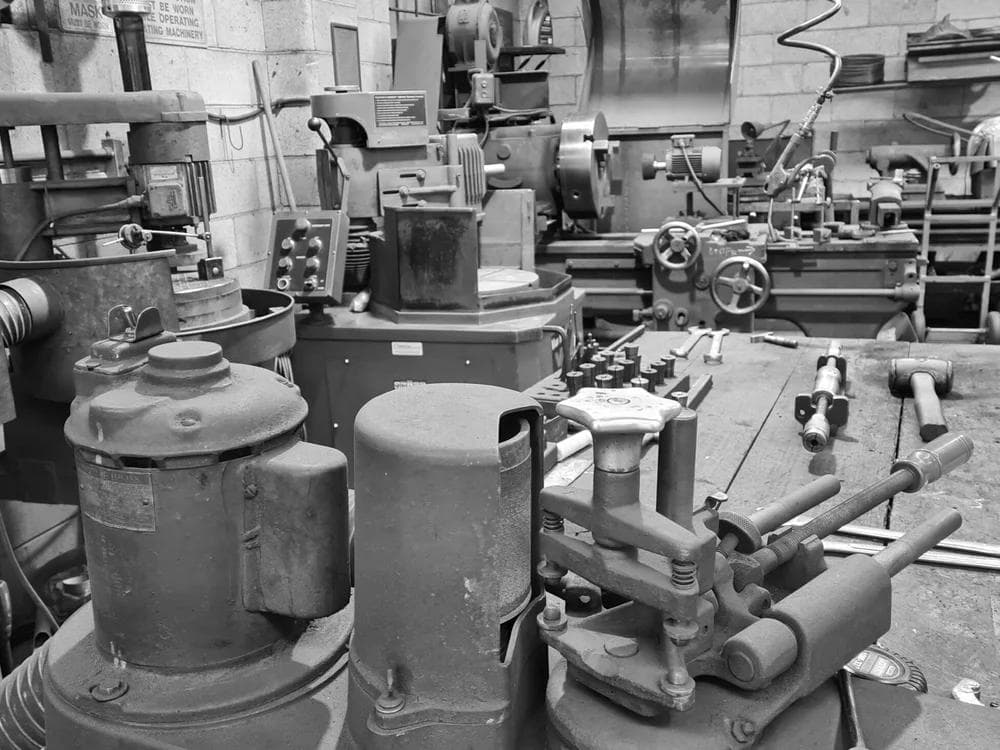

We operate multiple specialist lathes capable of all three manufacturer-specified surface finishes: ground finish, cross-hatch finish, and standard machined finish. The correct finish matters — some clutch and brake manufacturers specify a particular surface finish in their fitment instructions, and fitting new components to an incorrect finish can affect break-in behaviour, noise, and warranty validity.

Flywheel Machining — Mandatory for Every Clutch Replacement

Replacing a clutch kit without machining the flywheel is one of the most common reasons a new clutch fails prematurely or is rejected under warranty. The flywheel friction surface accumulates heat glazing, transfer material from the old clutch disc, and micro-steps at the outer ring where the disc has been running. A new clutch disc pressed against this surface will not bed in evenly — it will contact the high spots only, generating localised heat, slipping, and accelerated wear.

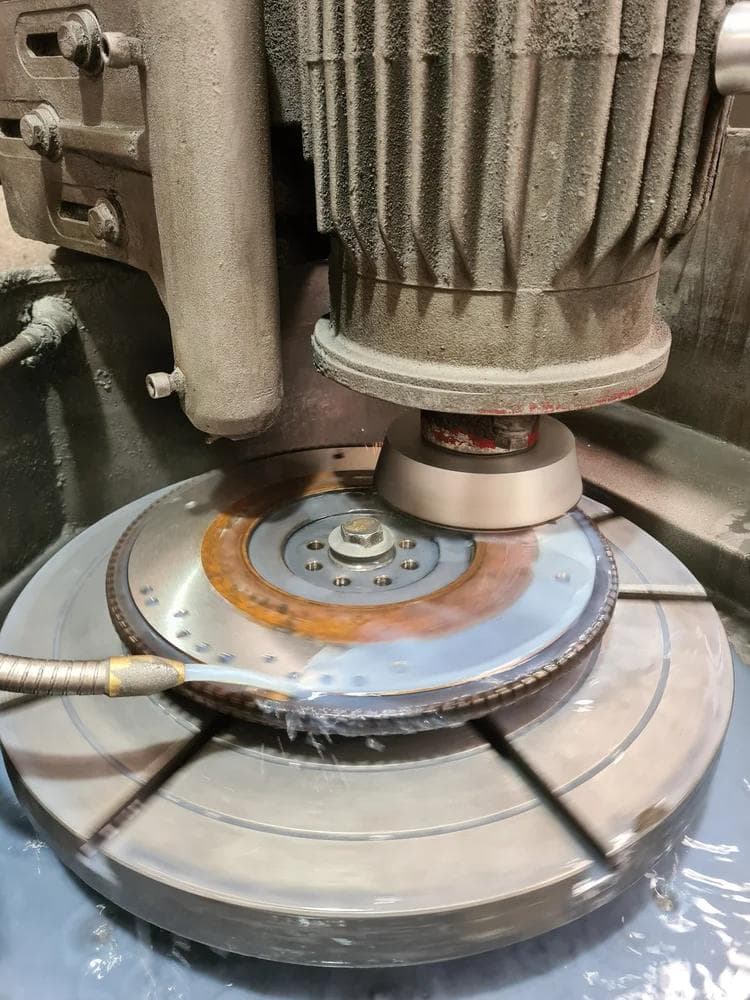

Flywheel machining removes all transfer material, re-establishes a flat friction surface, and realigns the outer step to factory specification. We machine flywheels on every clutch replacement we perform — and we machine components brought to us from other workshops and individuals who have pulled their own engines.

We also machine flywheels for dual mass flywheel (DMF) to solid flywheel conversion kits. When converting from a dual mass to a solid replacement flywheel, the solid flywheel often requires finish machining before the clutch kit can be fitted. We machine these to the clutch kit manufacturer's specified surface finish and runout tolerance.

We also stock replacement dowel pins for flywheels in a range of common sizes — these are frequently damaged on removal and need replacing before the flywheel can be refitted. Stocking these in-house means we can complete the job in one turnaround rather than waiting on parts.

Brake Disc and Rotor Machining — Restoring a Parallel, True Running Surface

Brake disc shudder when stopping at highway speeds, or pulsing through the brake pedal when towing a heavy load, is almost always caused by disc thickness variation (DTV) — a condition where the disc rotor is not perfectly parallel across its swept face. When DTV develops, each brake caliper piston must travel a different distance as the disc rotates, which translates back through the hydraulic circuit as pedal pulsation and through the suspension as a shudder.

DTV does not mean the disc is worn out. If the disc is above the legal minimum thickness specified under Australian Standard AS3617-1997 section 4.3(b)(iii) after machining, it can be restored to a parallel surface and continue in service. We measure the disc before machining to confirm it is within specification — if machining would take the disc below the manufacturer's minimum thickness, we will tell you upfront and quote replacement instead.

Machining also eliminates the lip that forms at the outer edge of the rotor sweep area — this lip can cause new brake pads to hang up or ride up on the edge, leading to brake squeal and uneven pad wear from the first application. Machining the rotor before fitting new pads gives new pads the best possible bedding-in surface.

Drum Machining — Cars, Commercial Vehicles, Trailers, and Agricultural Equipment

Brake drums fail in the same way discs do — prolonged heat cycling causes the drum to develop high and low spots on the internal bore surface, resulting in brake shudder, grabbing, and inconsistent pedal feel. Drums can be machined to restore a true, concentric bore if they are within the manufacturer's maximum rebore diameter.

Our drum capacity runs from 7" (small passenger vehicles) up to 15" drums used on heavy trucks, agricultural machinery, and commercial trailers. Most brake specialists can handle standard passenger car drums up to about 10–11". The capacity to handle 15" commercial drums means we can service fleet vehicles, prime movers, and agricultural equipment that other workshops cannot machine in-house.

When drums are machined to a new bore diameter, brake shoes must be radiused to match the new diameter. If new shoes are fitted to an enlarged drum without radiusing, only the centre of the shoe contacts the drum — reducing effective braking area and generating concentrated heat. We radius brake shoes as standard when machining drums, rather than fitting standard-radius shoes to a re-bored drum.

Disc Pad Refacing — Tapering Correction and Race Pad Thickness Adjustment

Brake pad refacing is an uncommon capability — we are one of the few workshops in Adelaide offering it. We reface pads that have developed a taper across their face due to a seized or sticking caliper (one edge wears faster than the other), and we reduce the thickness of race or performance pads where the pad is too thick for the specific caliper application.

Refacing requires a flat backing plate — pads with riveted or bonded wear indicators that protrude from the backing plate cannot be refaced without modification. Time and cost depends on pad material: ceramic pads machine differently to semi-metallic pads and carbon-ceramic pads. Contact us before bringing pads in so we can confirm whether your specific compound can be refaced and at what cost.

In-House vs Outsourced Machining — Why It Matters for Turnaround and Cost

The majority of mechanical workshops in Adelaide do not own a brake lathe. When machining is required as part of a brake or clutch job, components are sent to a specialist — typically adding one business day to the turnaround at minimum, and adding an outsourcing margin to the final bill. If the machinist identifies an issue (component out of specification, too thin to machine), the information has to travel back through the mechanic before a replacement can be ordered, adding another day.

At All Clutch & Brake, the person who diagnoses the brake problem, performs the machining, and fits the new parts is the same specialist. There is no outsourcing, no third-party communication delay, and no markup on a service we do not perform ourselves. We also accept components brought in directly — from mechanics who need trade machining, from DIY owners who have pulled their own parts, and from fleet operators who need multiple components processed in one visit.

Machining Pricing Guide

We can confirm before starting whether your component is within specification for machining. If it is not, we will tell you before starting any work.

All prices are guide prices based on the Adelaide market. Final cost depends on component size, material condition, surface finish required (ground, cross-hatch, or machined), drum bore diameter, and whether the component is within legal specification for machining. We assess every component before starting work — at no charge. Contact All Clutch & Brake on 08 8277 8122 or bring your component to Unit 1/3 Adelaide Terrace, St Marys SA 5042.

Pricing Guide

How Much Does Machining Services in Adelaide Cost?

Prices are a guide only. Final price depends on vehicle make, model, and parts required. Contact us for an exact quote.
