Custom Brake Hose Manufacturing in Adelaide

About This Service

Most workshops order brake hoses from a supplier catalogue, install what arrives, and hope it fits. All Clutch & Brake fabricates brake hoses in-house — which means we build to your vehicle's exact length, end fitting type, and material specification, not to a catalogue approximation. The hose we fit is the hose we made for that specific vehicle, that specific application, that specific suspension configuration.

Operating from our St Marys workshop since 1984, we fabricate rubber and ADR-compliant braided stainless hoses for standard passenger vehicles, lifted 4WDs requiring extended-length hoses, performance cars, classic and historic vehicles, and light commercial vehicles. We also fabricate steel Bundy hard-lines where rigid sections have corroded, split, or been damaged.

When Do You Need Custom Brake Hoses?

Custom brake hose fabrication is required in several situations that a standard catalogue order cannot solve:

OEM hose failure — standard rubber hoses degrade over time. The five failure modes are: visible external cracking from age and UV exposure; internal deterioration where the hose acts as a one-way valve, applying brake pressure normally but preventing full release (causing a seized caliper); swelling from engine oil or transmission fluid contamination of the outer rubber; chafing damage where the hose has been rubbing against a chassis or suspension component; and leaks at the crimp fitting. Any of these requires hose replacement.
Lifted or modified 4WDs — the single most common reason we fabricate custom-length hoses in Adelaide. When you lift a HiLux, LandCruiser, Patrol, or similar by 50mm or more, the suspension's full droop travel increases significantly. Standard OEM hoses are no longer long enough to accommodate this travel without pulling tight. A hose under tension at full droop cannot flex properly, stresses the crimp fittings, and will crack or pull out — both of which cause immediate loss of braking pressure at that corner.
Performance upgrades — braided stainless hoses are the standard upgrade for track-day and modified road vehicles. Under heavy braking, standard rubber hoses swell slightly under hydraulic pressure, causing a soft or spongy pedal. Braided stainless hoses with a PTFE liner do not expand under pressure, providing a firmer, more consistent pedal and more precise modulation at the limit.
Classic and historic vehicles — OEM brake hoses for pre-1990 vehicles are often discontinued, inconsistently available, or available only as generic lengths that require fabrication to fit. We match end fittings exactly — banjo bolts, male and female threaded ends, and the correct end fitting orientation — using your old hose as a sample if required.

Rubber vs Braided Stainless Brake Hoses — Which Is Right for Your Vehicle?

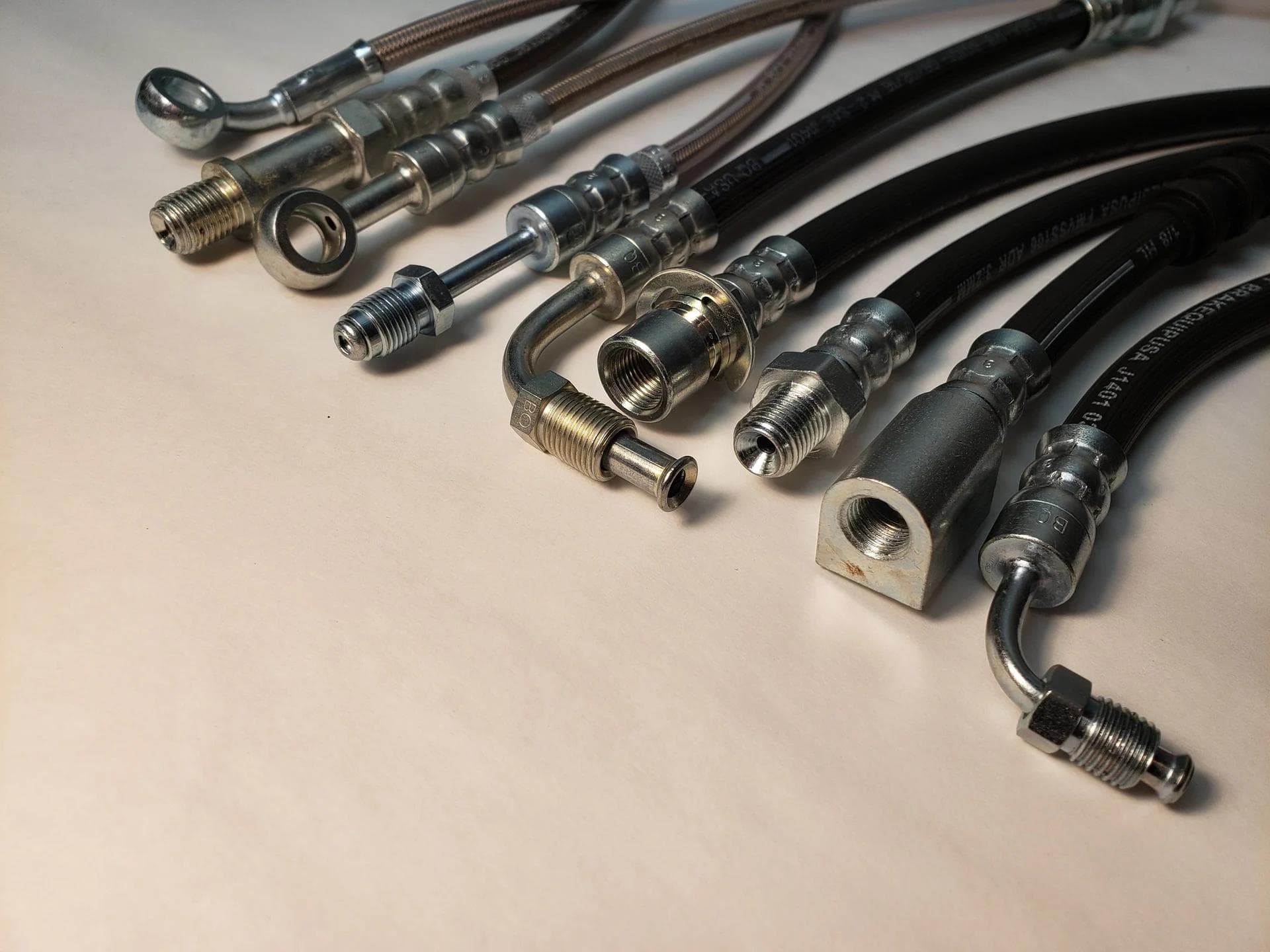

Rubber brake hoses: the standard for all road vehicles. Constructed from EPDM synthetic rubber with a braided fibre reinforcement layer and a smooth outer coating. We fabricate rubber hoses to SAE J1401 specification — the international standard that covers burst pressure (minimum 5,500 kPa), expansion characteristics, and end fitting pull-out resistance. For everyday passenger cars, SUVs, 4WDs, and light commercial vehicles driven on public roads, a correctly fabricated rubber hose is the appropriate specification.

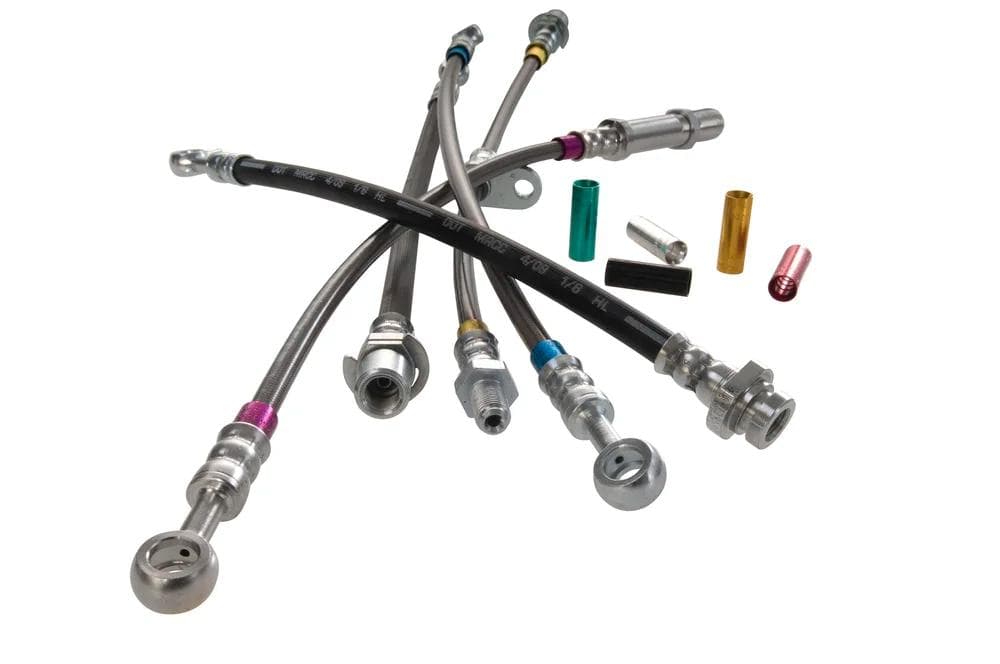

Braided stainless steel hoses: constructed with a PTFE (polytetrafluoroethylene) inner liner covered in a woven 304 stainless steel outer braid. The stainless braid prevents expansion under hydraulic pressure — a standard rubber hose at 2,000 kPa will expand measurably, which contributes to a spongy pedal feel. The PTFE liner is also resistant to brake fluid absorption and the higher fluid temperatures generated during track use. For braided hoses to be legal on Australian registered vehicles, they must comply with ADR 4204 — not all braided hoses sold online or through performance retailers carry this certification.

Every hose All Clutch & Brake fabricates — rubber or braided — is built to the correct ADR or SAE standard for its application. We do not fabricate non-compliant hoses for road-registered vehicles.

Extended-Length Hoses for Lifted 4WDs — Adelaide's Most Common Custom Hose Application

A significant proportion of our custom hose work in Adelaide is extended-length fabrication for lifted 4WDs. The vehicles we most commonly fabricate extended hoses for include:

Toyota HiLux (all generations from 1988 onwards) — 2" lift requires extended front hoses; 3–4" lift requires extended front and rear.
Toyota LandCruiser 76, 79, 100, 200, and 300 Series — the long-travel suspension on the 76 and 79 Series wagon and cab chassis means stock hoses are already marginal at standard height; any lift requires custom-length fabrication.
Nissan Patrol GQ, GU, and Y62 — GQ and GU with a 2–3" lift require extended front hoses; the Y62's independent front suspension means the geometry change from lifting is more pronounced, requiring careful length calculation.
Ford Ranger and Everest (2011 onwards) — the independent front suspension on the T6 and P375 Ranger platform means the front hose routing changes with lift height. We calculate correct length based on your specific lift kit, not a generic extended-length.
Mitsubishi Triton (ML, MN, MQ, MR) and Pajero Sport — extended hoses required from 2" lift upward, particularly on the front axle where the coil-over travel is most affected by lift height.
Jeep Wrangler JK and JL — full-width axle with long suspension travel means even modest lifts require extended-length hoses front and rear.

We calculate the correct hose length by measuring your actual suspension droop travel with the vehicle on a hoist — not from a general chart. If you have a non-standard lift height, a custom spring and damper combination, or a long-travel suspension kit, bring the vehicle in and we measure it directly.

Steel Bundy Hard-Line Fabrication

Brake hard-lines are the rigid metal tubes that carry hydraulic pressure between the master cylinder and each flexible hose junction. They fail through external corrosion — more common in older vehicles and those used in coastal or high-humidity environments — and through impact damage, stone chips, or collision repair work that kinks or splits a line.

We fabricate replacement hard-lines using copper-nickel alloy (Kunifer) tubing in 3/16" and 1/4" diameters — the two standard sizes used on Australian road vehicles. Kunifer is the correct material for brake hard-lines: it has a higher burst pressure rating than soft copper, is significantly more corrosion-resistant than steel, and can be bent and flared without cracking. Soft copper is not legal for brake lines on Australian road-registered vehicles.

We flare the ends to double-flare or bubble-flare specification depending on your vehicle's union fittings — the two are not interchangeable, and fitting the wrong flare type causes fluid leaks at the union. Following hard-line replacement, we pressure-test the system and bleed the full hydraulic circuit.

Classic and Historic Vehicle Brake Hose Fabrication

Brake hoses for pre-1990 vehicles — particularly pre-1970 Australian and British vehicles — are either unavailable from standard suppliers, or available only in generic lengths that do not match the original end fitting orientation. A hose with the wrong end fitting angle will sit under permanent tension once installed, placing constant stress on the crimp connection.

We fabricate replacement hoses for classic and historic vehicles by matching your original hose exactly — length, inner diameter, end fitting type (banjo, male thread, female thread, or stepped), and the rotational angle between the two end fittings. Bring your old hose in as a sample, or if the hose has already failed we remove it from the vehicle and fabricate the replacement on-site.

Custom Brake Hose Pricing Guide

Custom brake hose pricing depends on the hose type, length, end fittings, and whether installation is included. The guide below covers fabrication and fitting combined — we do not charge separate fabrication and labour fees. Every job starts with an inspection.

All prices listed are guide prices based on industry averages. Final cost depends on your vehicle make and model, hose type and length, end fitting specification, number of hoses required, and whether hydraulic bleeding is needed after installation. Contact All Clutch & Brake on 08 8277 8122 for a accurate quote specific to your vehicle.

Book Your Custom Brake Hose in Adelaide

Do not drive a lifted 4WD with stretched or non-compliant brake hoses. A hose that fails under braking at full droop causes immediate and total loss of braking pressure at that corner. We have seen hoses on lifted vehicles that were one wheel-flex away from pulling a crimp fitting out — an unrecoverable brake failure at highway speed.

Call All Clutch & Brake on 08 8277 8122 or bring your vehicle to Unit 1/3 Adelaide Terrace, St Marys SA 5042. Precise inspection, prompt fabrication for most hose types, quote before any work starts.
